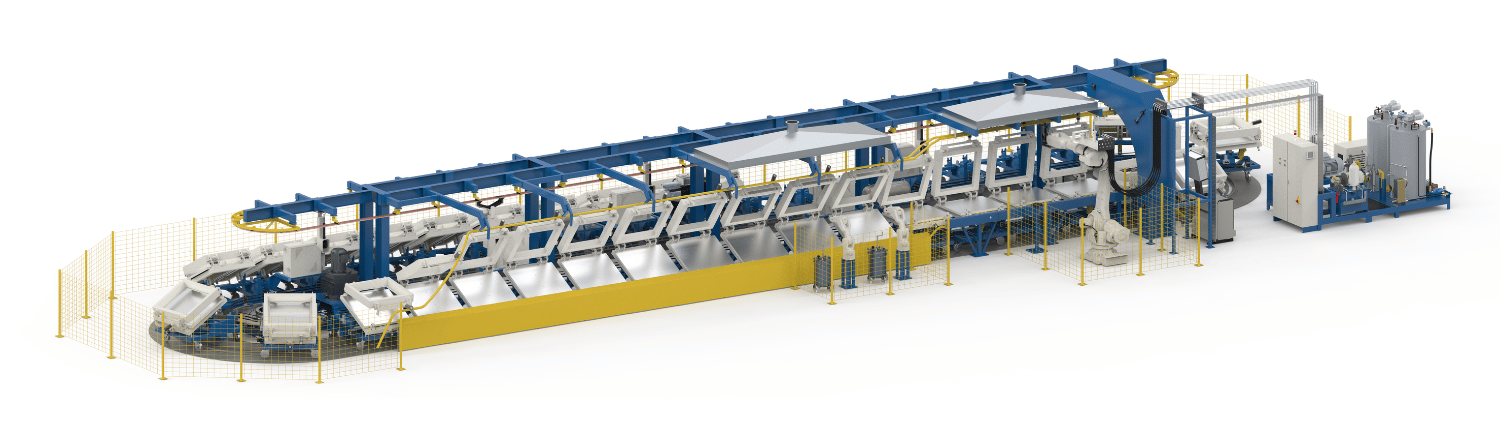

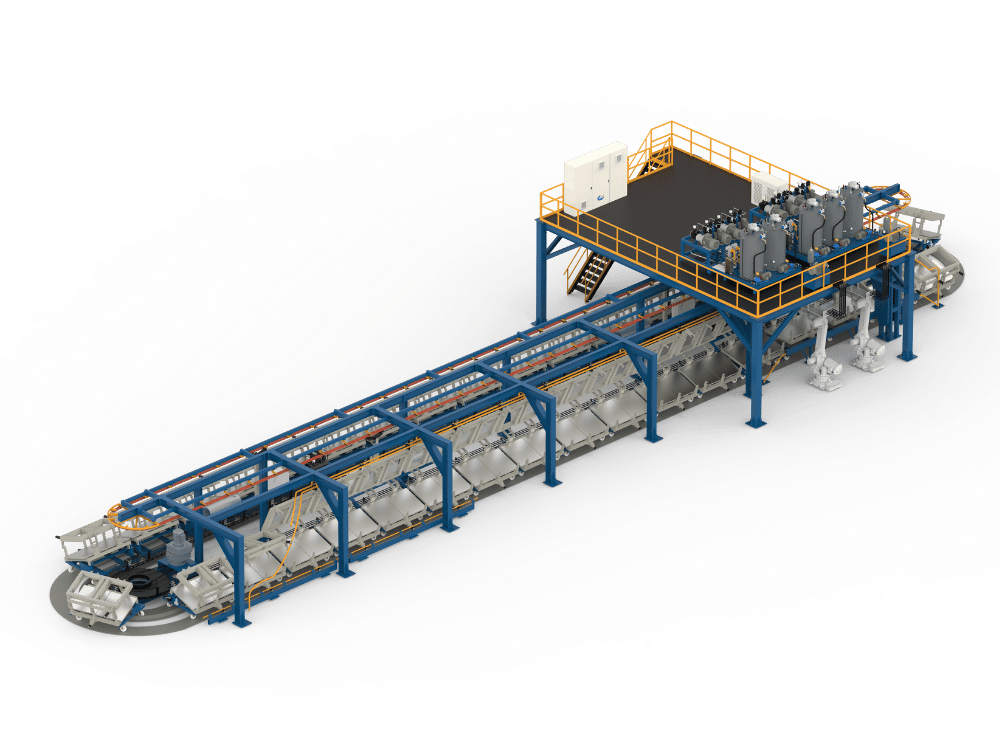

Polyurethane Mold Foaming Ground Rail Production Line
Providing Reliable Polyurethane Mold Foaming Solutions
We design Polyurethane Mold Foaming Ground Rail Production Line, also called oval line, for the batch production of medium to large items. It has a frequency conversion motor driven conveyor with pneumatic mold carriers and is very efficient and precise. The system is PLC controlled with constant regulation of hot water mold temperatures to maintain quality consistency. This line produces foam for pillows, automobile seats and other packaging items.
Polyurethane Equipment Manufacturer from China You can Trust
Zhejiang Henghui Machinery Co., Ltd. has been the top company in the field of polyurethane equipment manufacturing and servicing for the last 24 years. Since becoming the first in the industry to obtain the ISO 9001:2000 Quality Certificate in 2003, Middle and South America, Europe, and Asia remain our major customer base, with over 2500 systems in operation worldwide. Our engineers and technicians, with years of field experience, provide customers with the best production solution designed for their needs.
Automated Solutions for Production of Polyurethane Foams
This line of Polyurethane Mold Foaming Ground Rail Production lines, or oval lines, is state-of-the-art technology for the mass production of products with medium- to large sizes. The production lines feature a motorized conveyor with a frequency converter, pneumatic mold carriers, and state-of-the-art technology for precision and reliability.
Operational Overview:
Molds are placed on carrier trolleys, which are then moved along the ground rail conveyor. The pneumatic mold carriers are equipped with a mold-closing mechanism to ensure secure mold closure—the lifting of the air lock placed in the pneumatic struts that hold the closing mold in position. The molds have their cured products removed and put in a temperature-controlled hot-water recirculation system, sealing the products in the mold for optimum quality.
A PLC system controls the complete process for a fully automated production process. This system includes:
- Release agent spraying
- Load and pour agent systems
- Flow control systems
- Mold/jig clamping
- Heating and curing processes
- Mold unlock/jig unlock
- Discharge of foam and clearing of the mold
The fully automated production process and the PLC control system make this the most reliable and efficient system of polyurethane mold foaming.
Key Features and Benefits:
Unlike traditional low-pressure foaming systems, the Polyurethane Mold Foaming Ground Rail Production Line utilizes advanced automation and precision engineering to deliver superior performance and efficiency. This design offers several key advantages:
Advanced Automation
PLC control streamlines production, reducing labor and improving efficiency.
Precision Engineering
Ensures consistent material distribution and high-quality results.
Temperature Control
Hot water circulation maintains optimal mold conditions for superior product quality.
Durable Components
Includes a polyurethane foaming machine, mold carrier/cassette, industrial robot, mold temperature unit, and ground rail for reliable performance.
Versatile Applications
Ideal for manufacturing medium- to large-sized products, such as pillows, automobile seats, and packaging.
Eco-Friendly and Cost-Effective Operation
Minimizes material waste and energy consumption, supporting sustainable production practices.
Characteristics:
- Frequency conversion motor-driven conveyor system
- Pneumatic mold carrier with mold closer device for secure closing
- Hot water circulation system for precise mold temperature control
- PLC-controlled automation for continuous production
- Durable components, including mold carrier/cassette, industrial robot, and ground rail
- Eco-friendly design minimizing material waste and energy consumption
Suitable Applications & Industries
Automotive: Seats, headrests, armrests, and sound insulation components
Furniture & Bedding: Pillows, sofa cushions, and ergonomic office chairs
Packaging: Protective foam packaging for fragile goods
Consumer Goods: Foam-based products requiring medium to large-scale production
Why Choose This Production Line?
This production line is the preferred line of many customers due to the high sample speed and degree of automation, along with the versatile customization options to meet the unique needs of every customer. This automatisation means high-value production of mid to large series polyurethane products.
