Producing consistent molded foam at scale is tough with manual or batch methods. Quality drifts, output stalls, and labor costs climb. A polyurethane mold foaming oval production line solves that problem by moving molds through a continuous, automated cycle. It shapes your throughput, product quality, labor cost, and ability to scale. This guide explains what an oval line is, how it works, where it fits, its benefits and limits, and how to choose the right setup—so you can invest with confidence.

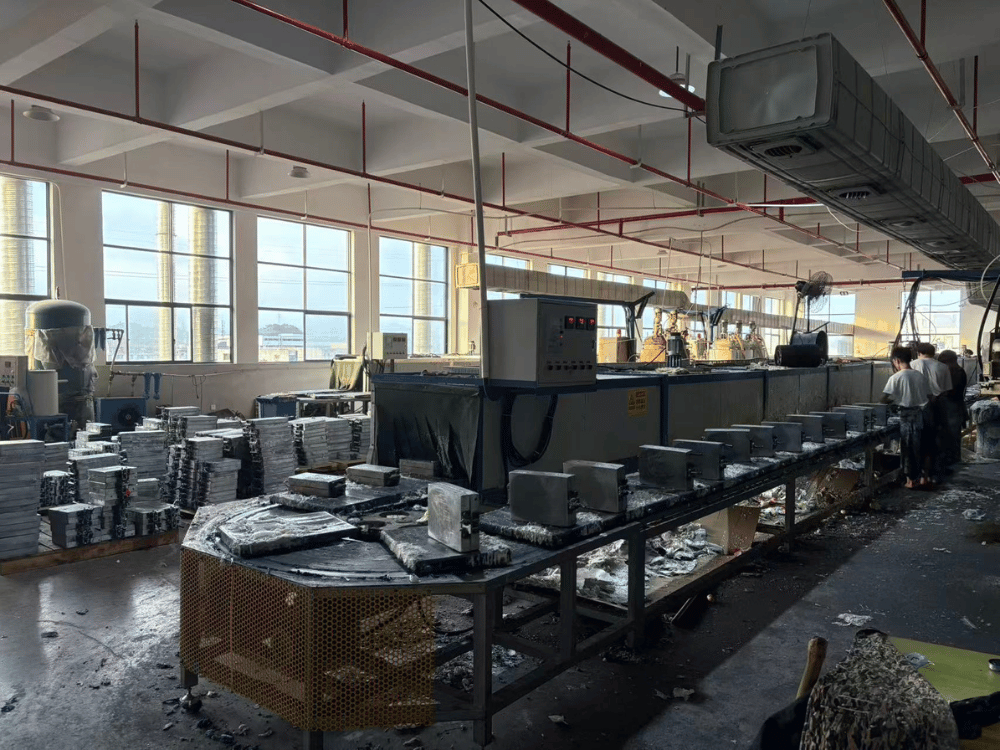

What Is a Polyurethane Mold Foaming Oval Production Line?
A polyurethane mold-foaming oval production line is an integrated, automated system that produces molded PU foam parts in medium- to large-batch sizes. Molds sit on carrier trolleys that travel around a closed-loop conveyor, passing each stage of the foaming cycle in sequence. As the carriers move, the system sprays release agent, pours the polyurethane mix, closes and clamps the molds, cures the foam, and then opens the molds to release finished parts. Typical outputs include automobile seats, pillows, cushions, and protective packaging foam. Within a wider PU foam production line setup, the oval line handles the molding stage, turning a metered chemical mix into shaped, ready-to-use foam products.
This system matters to buyers because it directly shapes throughput, product consistency, labor cost, and floor space. Manual or piecemeal foaming raises defect rates, introduces variation between parts, and leans heavily on operator skill at every step. An oval line standardizes the process and automates repetitive work that leads to inconsistency. Understanding its components, working principle, and selection factors helps your team invest with confidence and match the equipment to your real production needs.
Why It’s Called an Oval Line and How It Differs From Standalone Foaming Equipment
The name comes from the conveyor layout, and the key point is that an oval line is a complete system, not a single machine.
Where the “Oval” Name Comes From
The conveyor forms a continuous oval loop, so mold carriers cycle back to the starting point automatically after each pass. This closed-loop layout keeps production flowing without anyone manually repositioning molds between stations. As one carrier moves into curing, another enters spraying, and another reaches pouring. The loop keeps every station busy at once, which gives the line its steady, continuous output and high utilization throughout the full cycle.
Oval Line vs. Standalone Foaming Machine
A standalone PU foaming machine only meters, mixes, and dispenses the polyurethane. It does important work, but it stops there. A full oval line includes the conveyor, mold carriers, pneumatic mold closing, hot-water temperature control, and automated process steps around that machine. The result is a complete production system rather than a single tool. A standalone unit suits smaller or manual operations, while the oval line is built for repeatable, high-volume molded foam production where consistency and throughput matter most.
Main Components of an Oval Production Line
A complete oval line combines several coordinated systems, each handling a specific part of the foaming cycle. Here are the core components and what each one contributes.
Conveyor and Mold Carriers
The conveyor is the backbone of the line. A frequency-conversion motor drives it, moving the mold carrier trolleys smoothly around the oval loop at a controlled, adjustable speed. Each carrier holds a mold and advances station to station in sequence. Steady, precise movement keeps every stage in sync, so molds arrive at each station ready for the next step in the cycle without delay or misalignment.
Pneumatic Mold Closer and PU Foaming Machine
The pneumatic mold-closing device secures each mold during pouring and curing. Air locks in the pneumatic struts hold the mold shut under pressure, so the foam expands cleanly inside a sealed cavity and holds its shape. The PU foaming machine meters, mixes, and dispenses the polyurethane at consistent ratios. Accurate metering and stable mix ratios are critical here, as they directly determine foam density, cell structure, and overall surface quality.
PLC System and Hot Water Mold Temperature Control
The PLC system ties the whole line together, sequencing and synchronizing every step from spraying to discharge. It runs the cycle automatically and keeps each station timed correctly. The hot-water mold temperature unit circulates heated water to maintain molds at a steady, optimal temperature throughout the cycle. Stable mold temperature is one of the biggest drivers of quality. If it drifts, cure time and foam properties shift accordingly, and consistency suffers throughout the batch.
Spraying, Pouring, and Demolding Support Units
Auxiliary units complete the cycle and cut manual labor. Release agent spraying prepares each mold for clean demolding, while automated or robotic pouring places the mix precisely. Mold-opening, demolding, and cleaning stations then release finished parts and ready the molds for the next round. Together, these units reduce hands-on work and keep the cycle moving smoothly.
How a Polyurethane Mold Foaming Oval Production Line Works
The line works as a coordinated, station-by-station cycle around the oval loop. Each step builds on the one before it, so foam parts come out consistent, and production keeps flowing.
Mold Preparation and Release Agent Spraying
The cycle starts with mold preparation. As an empty mold reaches the first station, the system sprays an even coat of release agent across the mold surface. This coating lets the cured foam release cleanly and protects mold life over time. Even uniform spraying matters more than it appears. Too little makes demolding difficult and risks tearing parts, while too much can mar the surface—so consistent coating reduces variation.
Pouring, Mold Closing, and Rail Transfer
Next, the foaming machine pours the metered PU mix into the open mold at the pouring station. The mix enters at low viscosity, so it fills the cavity evenly before it begins to react and expand. The pneumatic closer then locks the mold shut, sealing the cavity so the foam expands cleanly. With the mold closed and clamped, the carrier advances automatically along the conveyor toward the curing zone, moving in a steady rhythm without manual handling between stations.
Heating, Curing, Demolding, and Cycle Reset
As the carrier travels, the hot-water unit maintains the mold at its target temperature while the foam cures inside. Controlled heat and dwell time ensure each part sets fully and develops the right structure and firmness. Once curing finishes, the mold unlocks and opens, and the finished part is demolded and discharged. The empty mold is then cleaned and prepared. Because the rail forms a closed oval, the carrier loops back to spraying, and the cycle repeats.
Main Applications of an Oval Line
Oval lines serve industries that need consistent, medium- to large-batch molded foam parts. Here are the key application areas and the value the line brings.
Automotive Seating and Interior Foam
Automotive manufacturing is a core market. Oval lines produce seats, headrests, armrests, and sound-insulation components, all of which require consistent foam density and precise dimensions. Comfort, safety, and fit depend on that uniformity, and the continuous cycle helps suppliers deliver identical parts to strict automotive standards run after run.
Furniture, Bedding, and Comfort Products
Furniture and bedding makers rely on oval lines for pillows, sofa cushions, and ergonomic office chair parts. These products need a consistent feel and shape across every unit, since customers quickly notice variation. A well-run line delivers that uniformity at scale, supporting both steady volume and dependable quality for the home and office market.
Packaging and Consumer Molded Foam
Protective foam packaging is another strong fit. The line molds custom inserts that cushion fragile goods in transit, ensuring consistent density and shape that reliably protect products. Beyond packaging, the same equipment handles a wide range of consumer molded foam goods, giving businesses an efficient, repeatable path to volume production.
Types and Automation Options
Oval lines vary by automation level and layout. Each configuration suits a different production scale and budget, so matching the type to your needs is an important early decision.
Semi-Automatic Oval Lines
Semi-automatic lines combine automated conveyor movement and temperature control with operator input at certain stages, such as spraying, pouring, or demolding. This setup suits smaller volumes or businesses balancing investment against output. It costs less upfront and offers flexibility, though it relies more on skilled operators and runs slower than a fully automated alternative.
Fully Automatic Oval Lines
Fully automatic lines link every station—spraying, pouring, clamping, curing, demolding, and cleaning—under PLC control with automated transfer. Robots often handle spraying and pouring for repeatable precision. This configuration delivers high throughput, tight consistency, and low labor cost, making it ideal for large-scale production. The trade-off is a higher initial investment, but steady, high-volume operations recover it quickly through efficiency.
Custom Layouts for Product and Capacity Needs
Many oval lines are configured to match specific products and capacity targets. Mold count, conveyor length, station layout, and the number of pouring or spraying points can all be tailored. This flexibility lets you size the line to your actual output goals and product mix, protecting your investment and leaving room to scale as demand grows.
Benefits and Practical Limitations
An oval line offers strong advantages in productivity and consistency, but it also carries real trade-offs worth weighing before you invest.
Key Benefits
The benefits are compelling. A well-designed oval line delivers continuous high productivity through automated cycling and consistent quality across every batch. PLC control and stable hot water temperature management reduce variation and defects, while automation reduces the manual labor required by traditional foaming. Precise metering improves material yield, lowering waste and per-unit cost as volume grows. Output also scales with mold count and line length. Together, these strengths support reliable, repeatable foam production that meets demanding standards in automotive, furniture, and packaging markets—protecting both delivery commitments and your reputation for quality.
Limitations to Consider
The trade-offs are real. An oval line requires significant floor space for the loop and supporting equipment, as well as a meaningful upfront investment. Mold management adds complexity, and maintenance calls for skilled technicians to keep the conveyor, pneumatics, foaming machine, and temperature unit running smoothly. The line rewards steady, high-volume production and may be over-specified for very low volumes or frequent product changes. Commissioning and operator training also add time before the line reaches full productivity, so plan for that ramp-up.
How to Choose the Right Oval Production Line
Choosing the right oval line means weighing several factors against your products, volume, and budget. A clear assessment of these points helps ensure long-term value and avoids costly missteps.
Product Type, Mold Count, and Output Targets
Start with what you make and how much. The size and shape of your foam products drive mold design, while your output goals determine the number of mold carriers and the conveyor length you need. A line built around realistic mold count and cycle time keeps production flowing without bottlenecks. Define these requirements early so the line matches your actual demand rather than a rough estimate.
Automation Level and Factory Layout
Match automation to your volume and precision needs. High, steady output favors a fully automatic line, while smaller or varied runs may suit a semi-automatic setup. Then confirm the oval loop fits your available floor space and integrates with your existing workflow. A line that crowds the workspace or disrupts material flow creates daily friction, so plan the layout before you commit.
Temperature Control, Maintenance, and After-Sales Support
Evaluate the hot water temperature system closely, since stable mold temperature is central to consistent foam quality and predictable cure. Also weigh ease of maintenance, spare parts availability, and supplier support, because these factors directly affect downtime and operating cost. A line that’s straightforward to service and backed by responsive support keeps production running and protects your investment.
Common Buying Mistakes to Avoid
Even experienced buyers make avoidable mistakes when investing in a foaming line. Watching for these pitfalls helps you choose wisely and protect your budget.
Buying for Price Instead of Process Fit
Focusing only on the lowest purchase price is a frequent and costly error. A cheaper line that can’t maintain temperature, sustain your cycle rate, or handle your mold count costs far more over time due to defects and slower output. Match the line to your products, output, and quality standards first. Model the total cost of ownership—installation, training, maintenance, spare parts, and downtime—across the line’s full service life, so your decision reflects the complete picture rather than the sticker price alone.
Overlooking Mold Management and Cycle Balance
Specifying the conveyor and equipment without planning mold count, cure time, and cycle balance is another common slip. Too few molds leave the line waiting, while mismatched cure time creates bottlenecks at the curing zone. Treat molds and timing as part of the system. Balance the mold count, conveyor speed, and curing duration early to ensure the cycle flows evenly. Getting this right from the start prevents the costly retrofits and lost capacity that trip up many first-time buyers.
Choosing the Right Oval Line for Long-Term Production
A polyurethane mold foaming oval production line is an integrated system that turns metered PU mix into finished molded foam through a continuous cycle of spraying, pouring, closing, curing, and demolding. It delivers the productivity, consistency, and labor savings that automotive, furniture, and packaging manufacturers need, while requiring meaningful investment, floor space, and skilled maintenance. The right choice depends on your product type, output goals, automation needs, and budget—and weighing those factors honestly leads to a decision that serves your business well.
Get Expert Guidance Before You Invest
Before you commit capital, consult production line specialists for a thorough needs assessment. They can confirm specifications against your products and output targets, help you balance mold count and cycle timing, and steer you clear of costly missteps. Request a tailored quote and compare configurations that fit your production goals, floor space, and growth plans—so your investment supports reliable, high-quality foam production for years to come.
Frequently Asked Questions
What is a polyurethane mold foaming oval production line?
It is an integrated, automated system that produces molded PU foam parts in medium- to large-batch sizes. Molds travel on carriers around a closed-loop, oval-shaped conveyor, passing through each stage of the foaming cycle—spraying, pouring, closing, curing, and demolding—in sequence. Because the loop runs continuously, molds automatically return to the start, keeping production flowing without manual repositioning.
What products can an oval line make?
An oval line is ideal for molded foam parts that need consistent density and shape across high volumes. Common outputs include automobile seats, headrests, and armrests, as well as pillows, sofa cushions, and ergonomic chair components. It also handles protective foam packaging and a wide range of consumer molded foam goods. If you tell us your product type and size, we can recommend the right mold and line configuration.
How is an oval line different from a standalone foaming machine?
A standalone foaming machine only meters, mixes, and dispenses the polyurethane mix. An oval line builds a complete production system around that machine, adding a conveyor, mold carriers, pneumatic mold closing, hot-water temperature control, and automated process steps. A standalone unit suits smaller or manual operations, while an oval line is built for repeatable, high-volume production where consistency and throughput matter most.
How does automation improve output and quality?
Automation keeps every station synchronized and removes the manual steps that cause variation. PLC control sequences for spraying, pouring, clamping, curing, and demolding, while the hot water unit maintains mold temperature at a stable level for a predictable cure. The result is higher throughput, consistent foam quality batch after batch, lower labor costs, and fewer defects, which lower your per-unit cost as volume grows.
What factors should I consider when selecting an oval line?
Start with your product size and shape, which drive mold design, and your output targets, which determine mold count and conveyor length. Then match the automation level to your volume—fully automatic for high, steady output, or semi-automatic for smaller or varied runs. Also, confirm the oval loop fits your floor space, and evaluate temperature control, maintenance needs, and supplier support to protect uptime and long-term value.
What maintenance does an oval line require?
Routine maintenance focuses on the conveyor, pneumatic components, foaming machine, and hot-water temperature unit, as well as regular mold cleaning and release-agent management. These tasks call for skilled technicians to keep the cycle running smoothly and consistently. When evaluating a line, check spare parts availability and supplier support, since responsive service directly reduces downtime and operating cost.
Does an oval line suit medium- or large-batch production?
Yes. An oval line is purpose-built for medium- to large-batch production, where its continuous cycle and automation deliver the strongest returns. It rewards steady, high-volume output with consistent quality and low labor cost. For very low volumes or frequent product changes, it may be over-specified, so it’s worth matching the line to your realistic production demand.
What information should I prepare before requesting a quote?
To get an accurate, tailored quote, prepare a few key details: your foam product types and sizes, target output (daily or annual volume), desired automation level, and available floor space. It also helps to note your preferred cycle time and any existing equipment you need the line to integrate with. With this information, our specialists can confirm specifications, balance mold count and cycle timing, and recommend the right configuration for your goals.
